Box Tilting Machine

Box Tilting Machine

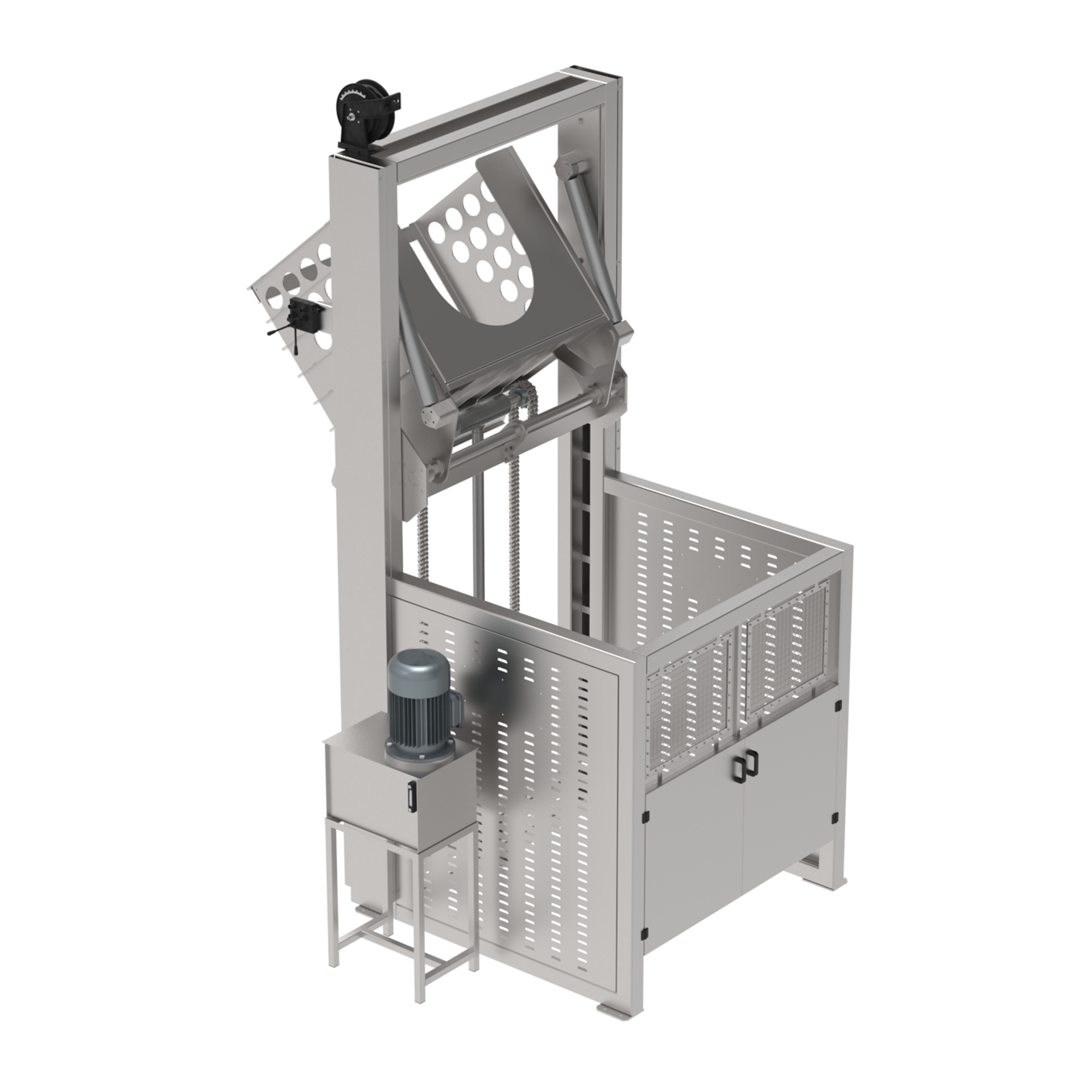

It is a machine used to lift products such as raisins, dried figs and dried apricots in a 500 kg crate together with the crate and to feed the rest of the line being present at the starting point of the relevant process line.

Standard Crate Dimensions: 1195x1005x725 mm

Max. Load Capacity: 600 Kg

Hour Capacity: 3 Tons

Drive: Hydraulic

Material Used: 304- Stainless

Oil Used: Hydraulic Number 68

Oil Volume: 90 Lt

Engine Power: 7,5 Kw/h

Operating Pressure: 120 Bar

Min. Operating Temperature: 0 °C

Max. Operating Temperature: 40 °C

Drive Mode: Manual

Drive Mode: Automatic (Optional)
